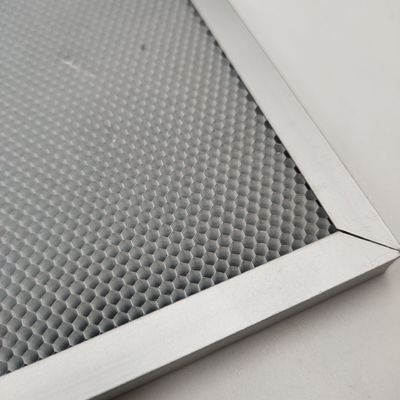

Aluminum Honeycomb Filter 500x500mm

I'm Online Chat Now

Aluminum Honeycomb Filter 500x500mm

Aluminum Honeycomb Filter 500x500mm
Aluminum Honeycomb Filter 500x500mm Aluminum Honeycomb Filter 500x500mm Aluminum Honeycomb Filter 500x500mm

Large Image :  Aluminum Honeycomb Filter 500x500mm

Product Details:
Place of Origin: China
Brand Name: BEECORE
Certification: ISO9001, ISO14001
Model Number: BHC3003
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 7-15working days
Payment Terms: T/T, L/C, PayPal
Supply Ability: 1000pcs per day

Aluminum Honeycomb Filter 500x500mm

Product Name: Aluminum Honeycomb Core Photocatalyst Filter Main Components: TiO2
Side Length: 1.83, 2mm Or Customizable Cell Size: 3.2. 3.5mm Or Customizable
Size: 500*500, 1000*200mm Or Customizable Frame: Aluminum Frame
Thickness: 10, 20mm Or Customizable Color: White
Applications: Indoor Foil Thickness: 0.04, 0.05mm
High Light:

honeycomb filter 500x500mm


ISO9001 honeycomb filter


20mm honeycomb air filter

With Aluminum Frame Aluminum Honeycomb Core Photocatalyst Filter Screen

1. Descriptions:


The photocatalyst filter screen based on aluminum honeycomb core produced by our company can effectively reduce wind resistance, increase the contact time between waste gas and reaction medium, and spray high-quality titanium dioxide material on the surface. Through the improvement of the company's unique formula, the photocatalytic effect of titanium dioxide is better. Photocatalyst filter screen with aluminum frame, the edge is not sharp.


2. Specifications:


Aluminum honeycomb core photocatalyst filter
Specifications Side length (mm) Foil Thickness (mm)
BHC3003-0.8-0.021L 0.8 0.021
BHC3003-0.8-0.025L 0.025
BHC3003-0.8-0.03L 0.03
BHC3003-1-0.025L 1 0.025
BHC3003-1-0.03L 0.03
BHC3003-1-0.04L 0.04
BHC3003-1.5-0.03L 1.5 0.03
BHC3003-1.5-0.04L 0.04
BHC3003-1.5-0.05L 0.05
BHC3003-1.83-0.04L 1.83 0.04
BHC3003-1.83-0.05L 0.05
BHC3003-1.83-0.06L 0.06
BHC3003-2-0.04L 2 0.04
BHC3003-2-0.05L 0.05
BHC3003-2-0.06L 0.06
BHC3003-2.5-0.04L 2.5 0.04
BHC3003-2.5-0.05L 0.05
BHC3003-2.5-0.06L 0.06
BHC3003-3-0.04L 3 0.04
BHC3003-3-0.05L 0.05
BHC3003-3-0.06L 0.06
BHC3003-3-0.08L 0.08
Size 100*100, 300*300, 500*500, 1000*1000mm or customizable
Surface spraying Photocatalyst, activated carbon, activated manganese
Frame Aluminum, Sponge, Paper frame
Materials Al3003 or other materials
Supply form Expanded


3. Aluminum Honeycomb Core Photocatalyst Filter​ has several advantages:


• High efficiency decomposition

• No dust

• No odor

• Custom size

• Custom frame

• Coating thickness

• Environment protection


4. Applications:


Fresh air system, air purifier, air conditioner

Aluminum Honeycomb Filter 500x500mm 0


Aluminum Honeycomb Filter 500x500mm 1


5. Quality control:


A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.

Strict QC team: 8 people are responsible for aluminum honeycomb core photocatalyst filter of quality control of parts, processing, testing, packaging, etc.


6. Aluminum Honeycomb Core Photocatalyst Filter of more pictures:


Aluminum Honeycomb Filter 500x500mm 2


Aluminum Honeycomb Filter 500x500mm 3


7. Company profile

Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.

8. History

1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.

1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.

2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.

2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.

2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.

2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.

2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.

2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.

2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.

Aluminum Honeycomb Filter 500x500mm 4


9. Factory show


Aluminum Honeycomb Filter 500x500mm 5


Aluminum Honeycomb Filter 500x500mm 6


Aluminum Honeycomb Filter 500x500mm 7


10. FAQ


Q1. What is Aluminum Honeycomb Core Photocatalyst Filter usd for?

A: The aluminum honeycomb core photocatalyst filter is used for Air conditioning, fresh air system, filter.


Q2. What are the advantages of Aluminum Honeycomb Core Photocatalyst Filter?

A: Aluminum honeycomb core photocatalyst filter has the advantages of light weight-high strength, high surface flatness, environmental protection and no pollution, high efficiency, no powder dropping.


Q3. What is the packaging method of Aluminum Honeycomb Core Photocatalyst Filter?

A: Aluminum honeycomb core photocatalyst filter of samples are packed in cardboard and bulk orders are packed in plywood cases.
